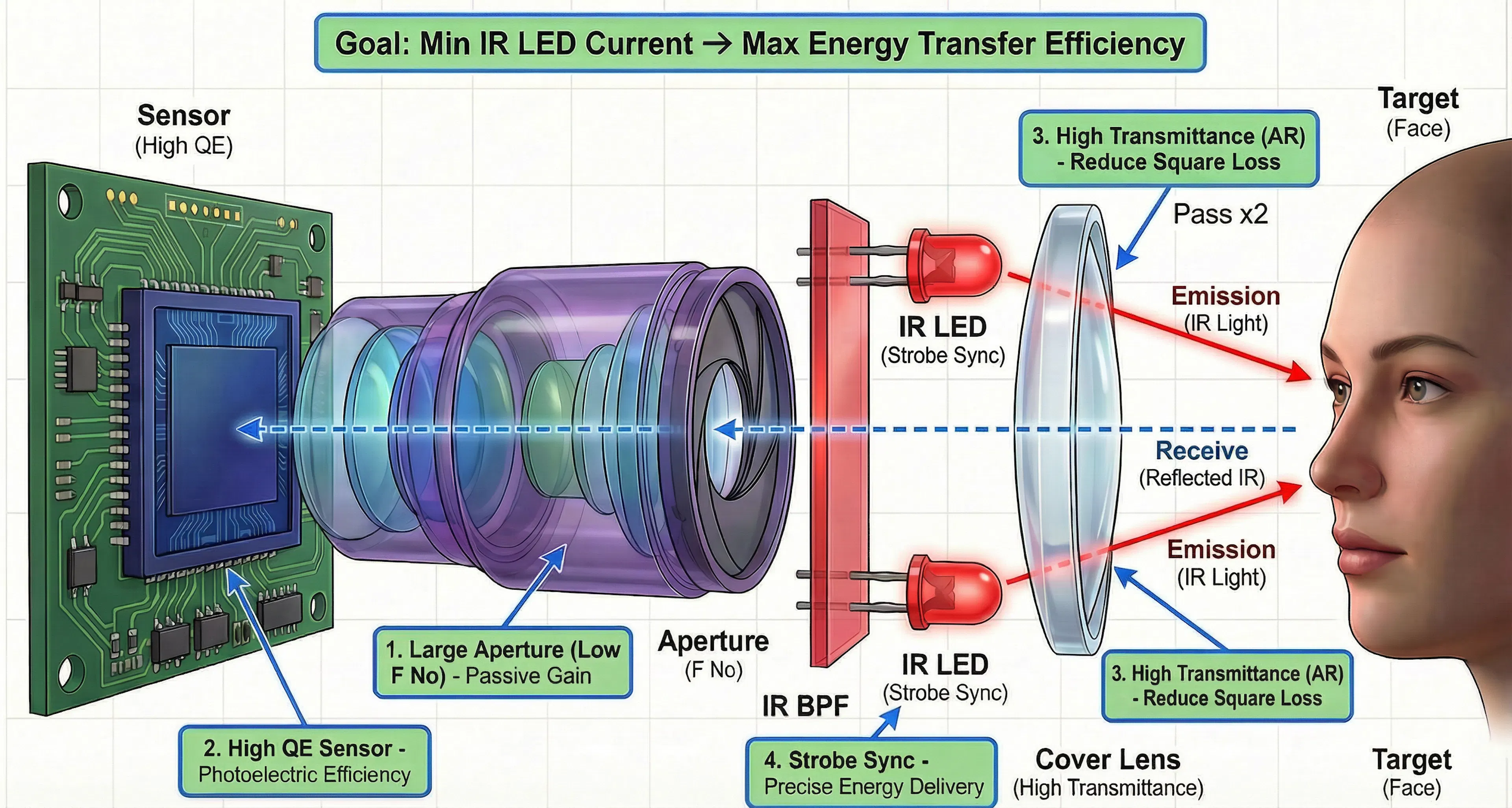

Image Engineer's Notes, Part7: In-Depth Analysis of IR Camera System Design

Achieving Maximum Energy Transfer Efficiency with Minimum IR LED Current When designing an IR Camera system that supports Windows Hello (Face Authentication), the core challenge is not only how to meet Microsoft's stringent image quality and security specifications, but more importantly, how to achieve maximum infrared energy transfer efficiency with the minimum IR LED current. This optimization goal directly relates to the product's power consumption, heat generation, battery life, and Signal-to-Noise Ratio (SNR) performance in low-light environments. This article will start from the perspective of the Optical Link Budget, deeply analyzing 10 key parameters (including shutter temporal efficiency) from light source emission to sensor reception. It introduces a computable engineering model, parameter optimization weights, and practical non-ideality considerations, establishing a system-level evaluation and design tool centered on "efficiency maximization" for imaging engineers and system architects. Windows Hello (Face Authentication) achieve maximum infrared energy transfer efficiency with the minimum IR LED current Optical Link Budget 10 key parameters computable engineering model, parameter optimization weights, and practical non-ideality considerations 1. Windows Hello Certification Requirements and the Necessity of Energy Efficiency Windows Hello has clear HLK (Hardware Lab Kit) testing requirements for IR Camera image quality, such as Spatial SNR > 30dB in an 80 lux environment. To achieve these metrics, the sensor must receive sufficient infrared energy. However, excessively high IR LED current leads to increased power consumption, severe heat generation, and higher costs. Spatial SNR > 30dB Therefore, optimizing the optical link to ensure every milliwatt of IR LED energy is efficiently utilized is the key to a successful design. The core requirements of Microsoft HLK testing are as follows: 2. Design Choice: RGB-IR Hybrid Sensor vs. Dedicated IR Camera In the early stages of system design, the sensor selection strategy directly determines the upper limit of energy efficiency. 2.1 RGB-IR Hybrid Sensor Captures both RGB and IR simultaneously through a single sensor and lens. While saving space and cost, it faces severe IR-RGB Crosstalk challenges. To compensate for the SNR loss caused by crosstalk, it is often necessary to increase the IR LED current, which contradicts the efficiency optimization goal. In scenarios pursuing ultimate energy efficiency, RGB-IR hybrid sensors are usually not the first choice. 2.2 Dedicated IR Camera Uses a dedicated Monochrome Sensor and an independent optical path. It has no crosstalk issues, and the lens can be optimized specifically for NIR, achieving the same image quality with a lower IR LED current. It is the preferred solution for pursuing ultimate efficiency and a high Windows Hello pass rate. Design Recommendation: If budget and space permit, a Dedicated IR Camera is the best choice to achieve "minimum IR LED current, maximum energy transfer efficiency". 3. Shutter Type: The Impact of Global Shutter and Rolling Shutter In an IR Camera system, the sensor's shutter type significantly impacts image quality, system complexity, and power consumption. The main types are Global Shutter and Rolling Shutter. When discussing the impact of shutter types on the system, a core concept is Temporal Efficiency, which quantifies the proportion of energy emitted by the IR LED that actually falls within the sensor's effective exposure time. The signal strength (Signal) received by the sensor can be expressed as: Signal ∝ ILED ⋅ t exp ⋅ ηtemporal Where ILED is the IR LED drive current, and texp is the exposure time. Global Shutter (GS) Global Shutter (GS) The working principle of a Global Shutter is that all pixels are exposed simultaneously and read simultaneously. This means that during exposure, the entire sensor array collects light at the same time, and then transfers the charge of all pixels to storage units in a very short time. Its advantages are: No Jello Effect: Because all pixels are exposed simultaneously, Global Shutter does not produce the geometric distortion (like tilting or wobbling) common in Rolling Shutter when capturing fast-moving objects. This is crucial for capturing rapid head movements or micro-expressions in biometric systems, ensuring geometric accuracy of the image. Better Synchronization and High Temporal Efficiency: In IR Camera systems, the IR LED usually emits light in pulses (Strobe). Global Shutter ensures all pixels are exposed simultaneously during the IR LED pulse, achieving more precise synchronization. This allows almost all emitted IR energy to be effectively utilized, so its temporal efficiency ($\eta_{temporal}$) is close to 1. This enables the system to achieve the target SNR at a lower average current. Ambient Light Suppression: Combined with Strobe exposure, Global Shutter can more effectively collect signals when the IR LED pulse is on and suppress ambient light when the pulse is off, further improving SNR. No Jello Effect: Because all pixels are exposed simultaneously, Global Shutter does not produce the geometric distortion (like tilting or wobbling) common in Rolling Shutter when capturing fast-moving objects. This is crucial for capturing rapid head movements or micro-expressions in biometric systems, ensuring geometric accuracy of the image. No Jello Effect: Better Synchronization and High Temporal Efficiency: In IR Camera systems, the IR LED usually emits light in pulses (Strobe). Global Shutter ensures all pixels are exposed simultaneously during the IR LED pulse, achieving more precise synchronization. This allows almost all emitted IR energy to be effectively utilized, so its temporal efficiency ($\eta_{temporal}$) is close to 1. This enables the system to achieve the target SNR at a lower average current. Better Synchronization and High Temporal Efficiency: Ambient Light Suppression: Combined with Strobe exposure, Global Shutter can more effectively collect signals when the IR LED pulse is on and suppress ambient light when the pulse is off, further improving SNR. Ambient Light Suppression: However, the disadvantage of Global Shutter is that it usually requires a more complex pixel structure to achieve simultaneous exposure and storage, which leads to: Higher Cost: Manufacturing costs are generally higher than Rolling Shutter sensors. Lower Quantum Efficiency (QE): Complex pixel structures may reduce the light-sensitive area, thereby lowering quantum efficiency. Sensor Power Consumption: GS is more complex in pixel structure and readout architecture, which may increase the sensor's own power consumption. However, at the system level (especially IR LED power consumption), it may actually have an efficiency advantage. Higher Cost: Manufacturing costs are generally higher than Rolling Shutter sensors. Higher Cost: Lower Quantum Efficiency (QE): Complex pixel structures may reduce the light-sensitive area, thereby lowering quantum efficiency. Lower Quantum Efficiency (QE): Sensor Power Consumption: GS is more complex in pixel structure and readout architecture, which may increase the sensor's own power consumption. However, at the system level (especially IR LED power consumption), it may actually have an efficiency advantage. Sensor Power Consumption: Rolling Shutter (RS) Rolling Shutter (RS) The working principle of a Rolling Shutter is to expose and read pixels sequentially, row by row or column by column. Its advantages are: Lower Cost: Relatively simple structure, lower manufacturing cost. Higher Quantum Efficiency (QE): Simple pixel structure, larger light-sensitive area, usually higher quantum efficiency. Lower Power Consumption: Sequential row reading generally consumes less power. Lower Cost: Relatively simple structure, lower manufacturing cost. Lower Cost: Higher Quantum Efficiency (QE): Simple pixel structure, larger light-sensitive area, usually higher quantum efficiency. Higher Quantum Efficiency (QE): Lower Power Consumption: Sequential row reading generally consumes less power. Lower Power Consumption: But the main disadvantages of Rolling Shutter are: Jello Effect: When capturing fast-moving objects, it produces image distortion, which can lead to inaccurate feature extraction in facial recognition. Synchronization Challenges and Low Temporal Efficiency: Due to the row-by-row exposure mechanism, it is difficult for the IR LED to perfectly align with the exposure time of all pixels, resulting in some emitted energy not being effectively received. This makes the temporal efficiency ($\eta_{temporal}$) significantly lower than 1. To achieve the same Signal or SNR, the system usually needs to increase the average IR LED current to compensate for this temporal energy loss. Poorer Ambient Light Suppression: Due to sequential exposure, it is difficult to precisely synchronize the IR LED pulse with the exposure time across the entire frame, resulting in less effective ambient light suppression compared to Global Shutter. Jello Effect: When capturing fast-moving objects, it produces image distortion, which can lead to inaccurate feature extraction in facial recognition. Jello Effect: When capturing fast-moving objects, it produces image distortion, which can lead to inaccurate feature extraction in facial recognition. Jello Effect: Synchronization Challenges and Low Temporal Efficiency: Due to the row-by-row exposure mechanism, it is difficult for the IR LED to perfectly align with the exposure time of all pixels, resulting in some emitted energy not being effectively received. This makes the temporal efficiency ($\eta_{temporal}$) significantly lower than 1. To achieve the same Signal or SNR, the system usually needs to increase the average IR LED current to compensate for this temporal energy loss. Synchronization Challenges and Low Temporal Efficiency: Due to the row-by-row exposure mechanism, it is difficult for the IR LED to perfectly align with the exposure time of all pixels, resulting in some emitted energy not being effectively received. This makes the temporal efficiency ($\eta_{temporal}$) significantly lower than 1. To achieve the same Signal or SNR, the system usually needs to increase the average IR LED current to compensate for this temporal energy loss. Synchronization Challenges and Low Temporal Efficiency: Poorer Ambient Light Suppression: Due to sequential exposure, it is difficult to precisely synchronize the IR LED pulse with the exposure time across the entire frame, resulting in less effective ambient light suppression compared to Global Shutter. Poorer Ambient Light Suppression: Due to sequential exposure, it is difficult to precisely synchronize the IR LED pulse with the exposure time across the entire frame, resulting in less effective ambient light suppression compared to Global Shutter. Poorer Ambient Light Suppression: Impact on IR LED Current From the perspective of energy utilization efficiency: Global Shutter: High temporal efficiency (ηtemporal ≈ 1) → Can use low average current Rolling Shutter: Low temporal efficiency (ηtemporal < 1) → Needs to increase average current for compensation Global Shutter: High temporal efficiency (ηtemporal ≈ 1) → Can use low average current Global Shutter: Rolling Shutter: Low temporal efficiency (ηtemporal < 1) → Needs to increase average current for compensation Rolling Shutter: Therefore, under the design goal of pursuing "minimum IR LED current", Global Shutter is generally the more advantageous architectural choice. Impact on Windows Hello Impact on Windows Hello For biometric systems like Windows Hello that have extremely high requirements for image quality and real-time performance, Global Shutter is usually the better choice. It provides distortion-free images, ensuring the accuracy of facial features under various user behaviors (like rapid head turning), and effectively improves the signal-to-noise ratio through precise synchronization mechanisms. Although Global Shutter is more complex in pixel structure and readout architecture, potentially increasing the sensor's own power consumption, its performance in suppressing ambient light and avoiding motion blur at the system level (especially IR LED power consumption) makes it a key factor in meeting the stringent Windows Hello certification standards. While Rolling Shutter has a lower cost, its image distortion in dynamic scenes and weaker ambient light suppression capabilities may require more complex software algorithms to compensate, increasing the overall complexity and risk of the system. Global Shutter is usually the better choice. 4. IR Camera System Deconstruction and Optical Link The IR LED and Sensor are located on the same side (camera side). This means the optical link is a "round-trip" process, and its impact on energy transfer efficiency is doubled: Emission Path: IR LED emits infrared light → penetrates Cover Lens → illuminates the face. Reception Path: Face reflects infrared light → penetrates Cover Lens again → penetrates IR BPF → enters lens (F No) → reaches Sensor receiving end. Emission Path: IR LED emits infrared light → penetrates Cover Lens → illuminates the face. Emission Path: Reception Path: Face reflects infrared light → penetrates Cover Lens again → penetrates IR BPF → enters lens (F No) → reaches Sensor receiving end. Reception Path: In this optical path, the Cover Lens is penetrated twice (once for emission and once for reception), producing a square attenuation effect; while the IR BPF is only penetrated once at the receiving end. This structure optimizes the energy efficiency at the emission end, reducing the burden on the IR LED. 5. System Energy Equation: From Qualitative to Quantitative Design To achieve "minimum IR LED current, maximum energy transfer efficiency", a computable engineering model is needed to quantify the impact of each parameter. Rewriting the infrared energy (Signal) equation received by the sensor into a form with I_LED as the target variable is as follows: Where: k: System constant, including geometric factors, etc. I_LED: IR LED drive current. η_LED: IR LED photoelectric conversion efficiency (mW/A), affected by non-idealities. T_cover^2: Infrared transmittance of the Cover Lens, squared due to the round-trip optical path. R_face: Reflectance of the face to infrared light (approx. 40-60%). d: Complete optical path distance, including the emission distance from IR LED to face and the reception distance from face reflection to Sensor. Because light travels back and forth, energy attenuates with the square of the distance (1/d²), where d can be approximated as the distance between the IR LED/Sensor and the face (since the IR LED and Sensor are adjacent, their distances to the face are approximately equal). T_BPF: Transmittance of the IR Bandpass Filter. F: Lens F-number, its inverse square represents energy gain. QE: Quantum efficiency of the sensor in the NIR band. t_exp: Exposure time. η_temporal: Temporal efficiency, representing the proportion of IR LED emitted energy that falls within the effective exposure time (Global Shutter is close to 1, Rolling Shutter is less than 1). G_bin: Sensitivity improvement multiplier brought by Binning mode. k: System constant, including geometric factors, etc. k: I_LED: IR LED drive current. I_LED: η_LED: IR LED photoelectric conversion efficiency (mW/A), affected by non-idealities. η_LED: T_cover^2: Infrared transmittance of the Cover Lens, squared due to the round-trip optical path. T_cover^2: R_face: Reflectance of the face to infrared light (approx. 40-60%). R_face: d: Complete optical path distance, including the emission distance from IR LED to face and the reception distance from face reflection to Sensor. Because light travels back and forth, energy attenuates with the square of the distance (1/d²), where d can be approximated as the distance between the IR LED/Sensor and the face (since the IR LED and Sensor are adjacent, their distances to the face are approximately equal). d: T_BPF: Transmittance of the IR Bandpass Filter. T_BPF: F: Lens F-number, its inverse square represents energy gain. F: QE: Quantum efficiency of the sensor in the NIR band. QE: t_exp: Exposure time. t_exp: η_temporal: Temporal efficiency, representing the proportion of IR LED emitted energy that falls within the effective exposure time (Global Shutter is close to 1, Rolling Shutter is less than 1). η_temporal: G_bin: Sensitivity improvement multiplier brought by Binning mode. G_bin: This equation is the foundation for Design Budget and Current Estimation. The design goal is to maximize the product of the denominator of the equation to minimize the required IR LED drive current. 6. In-Depth Analysis of Core Hardware Parameters and Optimization Weights After understanding the system energy equation, the following will deeply analyze each key parameter and rank their weights based on their impact on energy transfer efficiency to guide the design optimization direction. 6.1 Parameter Optimization Sensitivity Ranking In situations with limited resources, it is crucial to prioritize optimizing the parameters that have the greatest impact on energy efficiency. The following table ranks the optimization potential of each parameter based on rules of thumb: Design Priority: Priority should be given to parameters like F No, Binning Mode, Shutter Type, Sensor QE that can bring "passive gain" or "high-efficiency conversion". IR LED Current should be used as a final fine-tuning method, not the primary optimization goal. Design Priority: F No, Binning Mode, Shutter Type, Sensor QE IR LED Current 6.2 Light Source Emission End: Precise Energy Delivery and Non-Ideality Considerations IR LED Current: • Optimization Strategy: Use Strobe mode precisely synchronized with Sensor exposure to ensure energy is concentrated within the effective time, reducing average power consumption. • Practical Pitfalls: IR LED Non-Idealities: 1.Efficiency Droop: As current increases, the photoelectric conversion efficiency (lm/W or mW/A) of the IR LED actually decreases. This means "adding current does not equal proportionally adding light", and blindly increasing current leads to energy waste. 2.Thermal Coupling: Under long-term high-current operation, the temperature of the IR LED will rise significantly. High temperatures will cause the output optical power of the IR LED to drop, thereby reducing the system's SNR performance. 3.Wavelength Shift: The emission wavelength of the IR LED will shift towards longer wavelengths as temperature rises (e.g., 940nm → 950nm). If the center wavelength of the IR BPF is fixed, wavelength shift will cause the BPF filtering efficiency to drop, and a large amount of energy will be directly filtered out, severely affecting energy transfer efficiency. • Conclusion: Under high current and high temperature conditions, the photoelectric efficiency and wavelength stability of the IR LED will decrease. Therefore, simply increasing the current is not an effective strategy and may even reduce the overall energy efficiency of the system. IR LED Current: • Optimization Strategy: Use Strobe mode precisely synchronized with Sensor exposure to ensure energy is concentrated within the effective time, reducing average power consumption. • Practical Pitfalls: IR LED Non-Idealities: 1.Efficiency Droop: As current increases, the photoelectric conversion efficiency (lm/W or mW/A) of the IR LED actually decreases. This means "adding current does not equal proportionally adding light", and blindly increasing current leads to energy waste. 2.Thermal Coupling: Under long-term high-current operation, the temperature of the IR LED will rise significantly. High temperatures will cause the output optical power of the IR LED to drop, thereby reducing the system's SNR performance. 3.Wavelength Shift: The emission wavelength of the IR LED will shift towards longer wavelengths as temperature rises (e.g., 940nm → 950nm). If the center wavelength of the IR BPF is fixed, wavelength shift will cause the BPF filtering efficiency to drop, and a large amount of energy will be directly filtered out, severely affecting energy transfer efficiency. • Conclusion: Under high current and high temperature conditions, the photoelectric efficiency and wavelength stability of the IR LED will decrease. Therefore, simply increasing the current is not an effective strategy and may even reduce the overall energy efficiency of the system. IR LED Current: IR LED Current: • Optimization Strategy: Use Strobe mode precisely synchronized with Sensor exposure to ensure energy is concentrated within the effective time, reducing average power consumption. • Optimization Strategy: Strobe mode • Practical Pitfalls: IR LED Non-Idealities: • Practical Pitfalls: IR LED Non-Idealities: 1.Efficiency Droop: As current increases, the photoelectric conversion efficiency (lm/W or mW/A) of the IR LED actually decreases. This means "adding current does not equal proportionally adding light", and blindly increasing current leads to energy waste. 1.Efficiency Droop: 2.Thermal Coupling: Under long-term high-current operation, the temperature of the IR LED will rise significantly. High temperatures will cause the output optical power of the IR LED to drop, thereby reducing the system's SNR performance. 2.Thermal Coupling: 3.Wavelength Shift: The emission wavelength of the IR LED will shift towards longer wavelengths as temperature rises (e.g., 940nm → 950nm). If the center wavelength of the IR BPF is fixed, wavelength shift will cause the BPF filtering efficiency to drop, and a large amount of energy will be directly filtered out, severely affecting energy transfer efficiency. 3.Wavelength Shift: • Conclusion: Under high current and high temperature conditions, the photoelectric efficiency and wavelength stability of the IR LED will decrease. Therefore, simply increasing the current is not an effective strategy and may even reduce the overall energy efficiency of the system. • Conclusion: IR LED Distance (Physical Distance): Optimize the distance between the LED and Sensor to balance parallax and illumination uniformity, avoiding being forced to increase overall current due to insufficient local illumination. A distance that is too close may cause internal light leakage (Flare), while a distance that is too far may cause uneven illumination. IR LED Distance (Physical Distance): Optimize the distance between the LED and Sensor to balance parallax and illumination uniformity, avoiding being forced to increase overall current due to insufficient local illumination. A distance that is too close may cause internal light leakage (Flare), while a distance that is too far may cause uneven illumination. IR LED Distance (Physical Distance): Optimize the distance between the LED and Sensor to balance parallax and illumination uniformity, avoiding being forced to increase overall current due to insufficient local illumination. A distance that is too close may cause internal light leakage (Flare), while a distance that is too far may cause uneven illumination. IR LED Distance (Physical Distance): 6.3 Optical Transmission: Combating Square Attenuation Cover Lens T (Transmittance): Use high-quality AR coating, striving for NIR transmittance > 95%. Because the Cover Lens is penetrated twice, its total transmittance is T^2. For every 1% increase in transmittance (e.g., from 94% to 95%), the total energy can increase by about (0.95^2 / 0.94^2) - 1 ≈ 2.1%, which can significantly reduce the demand for LED current. IR BPF (Bandpass Filter) and Angle of Incidence (AOI) Blue Shift Effect: The center wavelength needs to precisely match the light source to maximize passband transmittance and block ambient noise. However, in practical design, the impact of the Angle of Incidence (AOI) of light on the BPF transmittance curve must be considered. When light enters the BPF at a non-perpendicular angle (e.g., 30 degrees), its transmittance curve will experience a Blue Shift, meaning the center wavelength shifts towards shorter wavelengths. 0 Degree Incidence (Center Area): Light enters perpendicularly, the center wavelength of the BPF precisely matches the design value (e.g., 940nm), and energy transfer efficiency is highest. 30 Degree Incidence (Corner Area): Due to the lens's Field of View (FOV) and Chief Ray Angle (CRA), light reaching the edge of the sensor has a larger angle of incidence. According to the principle of thin-film interference, a 30-degree angle of incidence may cause the center wavelength of a 940nm BPF to shift towards shorter wavelengths by more than 30nm. If the BPF bandwidth is too narrow, the effective 940nm signal will be partially or even completely filtered out, resulting in severe energy loss caused by spectral mismatch in the corner area (Spectral Mismatch Loss). Design Countermeasures: This forms a dual challenge with the drop in corner MTF. To compensate for the corner energy loss caused by angle blue shift, it is necessary to select an appropriate BPF bandwidth (FWHM) during design, or adopt a design where the center wavelength is slightly shifted towards longer wavelengths (e.g., 945nm), to ensure that the 940nm signal still falls within the high-transmittance passband at large angles of incidence. At the same time, high refractive index coating materials can be selected to reduce angle sensitivity. Cover Lens T (Transmittance): Use high-quality AR coating, striving for NIR transmittance > 95%. Because the Cover Lens is penetrated twice, its total transmittance is T^2. For every 1% increase in transmittance (e.g., from 94% to 95%), the total energy can increase by about (0.95^2 / 0.94^2) - 1 ≈ 2.1%, which can significantly reduce the demand for LED current. Cover Lens T (Transmittance): IR BPF (Bandpass Filter) and Angle of Incidence (AOI) Blue Shift Effect: The center wavelength needs to precisely match the light source to maximize passband transmittance and block ambient noise. However, in practical design, the impact of the Angle of Incidence (AOI) of light on the BPF transmittance curve must be considered. When light enters the BPF at a non-perpendicular angle (e.g., 30 degrees), its transmittance curve will experience a Blue Shift, meaning the center wavelength shifts towards shorter wavelengths. 0 Degree Incidence (Center Area): Light enters perpendicularly, the center wavelength of the BPF precisely matches the design value (e.g., 940nm), and energy transfer efficiency is highest. 30 Degree Incidence (Corner Area): Due to the lens's Field of View (FOV) and Chief Ray Angle (CRA), light reaching the edge of the sensor has a larger angle of incidence. According to the principle of thin-film interference, a 30-degree angle of incidence may cause the center wavelength of a 940nm BPF to shift towards shorter wavelengths by more than 30nm. If the BPF bandwidth is too narrow, the effective 940nm signal will be partially or even completely filtered out, resulting in severe energy loss caused by spectral mismatch in the corner area (Spectral Mismatch Loss). Design Countermeasures: This forms a dual challenge with the drop in corner MTF. To compensate for the corner energy loss caused by angle blue shift, it is necessary to select an appropriate BPF bandwidth (FWHM) during design, or adopt a design where the center wavelength is slightly shifted towards longer wavelengths (e.g., 945nm), to ensure that the 940nm signal still falls within the high-transmittance passband at large angles of incidence. At the same time, high refractive index coating materials can be selected to reduce angle sensitivity. IR BPF (Bandpass Filter) and Angle of Incidence (AOI) Blue Shift Effect: Angle of Incidence (AOI) Blue Shift 0 Degree Incidence (Center Area): Light enters perpendicularly, the center wavelength of the BPF precisely matches the design value (e.g., 940nm), and energy transfer efficiency is highest. 30 Degree Incidence (Corner Area): Due to the lens's Field of View (FOV) and Chief Ray Angle (CRA), light reaching the edge of the sensor has a larger angle of incidence. According to the principle of thin-film interference, a 30-degree angle of incidence may cause the center wavelength of a 940nm BPF to shift towards shorter wavelengths by more than 30nm. If the BPF bandwidth is too narrow, the effective 940nm signal will be partially or even completely filtered out, resulting in severe energy loss caused by spectral mismatch in the corner area (Spectral Mismatch Loss). Design Countermeasures: This forms a dual challenge with the drop in corner MTF. To compensate for the corner energy loss caused by angle blue shift, it is necessary to select an appropriate BPF bandwidth (FWHM) during design, or adopt a design where the center wavelength is slightly shifted towards longer wavelengths (e.g., 945nm), to ensure that the 940nm signal still falls within the high-transmittance passband at large angles of incidence. At the same time, high refractive index coating materials can be selected to reduce angle sensitivity. 0 Degree Incidence (Center Area): Light enters perpendicularly, the center wavelength of the BPF precisely matches the design value (e.g., 940nm), and energy transfer efficiency is highest. 0 Degree Incidence (Center Area): 30 Degree Incidence (Corner Area): Due to the lens's Field of View (FOV) and Chief Ray Angle (CRA), light reaching the edge of the sensor has a larger angle of incidence. According to the principle of thin-film interference, a 30-degree angle of incidence may cause the center wavelength of a 940nm BPF to shift towards shorter wavelengths by more than 30nm. If the BPF bandwidth is too narrow, the effective 940nm signal will be partially or even completely filtered out, resulting in severe energy loss caused by spectral mismatch in the corner area (Spectral Mismatch Loss). 30 Degree Incidence (Corner Area): severe energy loss caused by spectral mismatch in the corner area (Spectral Mismatch Loss). Design Countermeasures: This forms a dual challenge with the drop in corner MTF. To compensate for the corner energy loss caused by angle blue shift, it is necessary to select an appropriate BPF bandwidth (FWHM) during design, or adopt a design where the center wavelength is slightly shifted towards longer wavelengths (e.g., 945nm), to ensure that the 940nm signal still falls within the high-transmittance passband at large angles of incidence. At the same time, high refractive index coating materials can be selected to reduce angle sensitivity. Design Countermeasures: 6.4 Receiving End: Passive Gain and Sensitivity F No (F-number) and MTF Trade-off: According to the camera equation, a large aperture (low F-number) is the most effective means to obtain passive energy gain. The energy received by the sensor is proportional to 1/F^2. For example, upgrading from F/2.8 to F/2.0 provides an energy gain of about (2.8^2 / 2.0^2) ≈ 1.96 times, directly reducing the reliance on LED current by nearly 50%. However, an excessively large aperture will increase aberrations, leading to a drop in corner MTF (Modulation Transfer Function). During design, a balance must be struck between "improving SNR" and "maintaining corner MTF" to ensure that facial features in edge areas remain clear. (Note: In practice, SFR curves are often used to approximate MTF measurements, but it should be noted that SFR includes the impact of digital processing and is fundamentally different from pure optical MTF.) F No (F-number) and MTF Trade-off: According to the camera equation, a large aperture (low F-number) is the most effective means to obtain passive energy gain. The energy received by the sensor is proportional to 1/F^2. For example, upgrading from F/2.8 to F/2.0 provides an energy gain of about (2.8^2 / 2.0^2) ≈ 1.96 times, directly reducing the reliance on LED current by nearly 50%. However, an excessively large aperture will increase aberrations, leading to a drop in corner MTF (Modulation Transfer Function). During design, a balance must be struck between "improving SNR" and "maintaining corner MTF" to ensure that facial features in edge areas remain clear. (Note: In practice, SFR curves are often used to approximate MTF measurements, but it should be noted that SFR includes the impact of digital processing and is fundamentally different from pure optical MTF.) F No (F-number) and MTF Trade-off: large aperture (low F-number) corner MTF (Modulation Transfer Function) Sensor QE (Quantum Efficiency): Select NIR-enhanced sensors (QE > 40%) to improve photoelectric conversion efficiency. High QE means each photon can generate more electrons, directly increasing signal strength. Pixel Size / Binning Mode: Utilize large pixels or 2x2 Binning to improve sensitivity. Under the premise of meeting the 320x320 resolution requirement, Binning can reduce the required illumination energy by several times (e.g., 2x2 Binning can increase sensitivity by 4 times), but attention must be paid to the impact Binning may have on spatial resolution. Sensor QE (Quantum Efficiency): Select NIR-enhanced sensors (QE > 40%) to improve photoelectric conversion efficiency. High QE means each photon can generate more electrons, directly increasing signal strength. Sensor QE (Quantum Efficiency): Pixel Size / Binning Mode: Utilize large pixels or 2x2 Binning to improve sensitivity. Under the premise of meeting the 320x320 resolution requirement, Binning can reduce the required illumination energy by several times (e.g., 2x2 Binning can increase sensitivity by 4 times), but attention must be paid to the impact Binning may have on spatial resolution. Pixel Size / Binning Mode: 2x2 Binning 7. Noise Model and SNR Optimization: The Challenge of Ambient IR Signal-to-Noise Ratio (SNR) is a key metric for measuring image quality, defined as the ratio of Signal to Noise. The main sources of Noise include: Where: Shot noise: Already directly represented by Signal in the formula, its value is equal to the variance of Shot noise, so it does not need to be squared again inside the square root. N_read (Read Noise): The noise of the sensor's readout circuit itself. In the formula, N_read^2 represents the variance of the read noise, which is usually a fixed value. N_ambient (Ambient Infrared Noise): Represents the variance of ambient infrared noise, i.e., additional photon noise, so it does not need to be squared again inside the square root. This is an extremely critical and often overlooked noise source in practice, especially under high ambient light conditions. Shot noise: Already directly represented by Signal in the formula, its value is equal to the variance of Shot noise, so it does not need to be squared again inside the square root. Shot noise: Already directly represented by Signal in the formula, its value is equal to the variance of Shot noise, so it does not need to be squared again inside the square root. Shot noise: Signal N_read (Read Noise): The noise of the sensor's readout circuit itself. In the formula, N_read^2 represents the variance of the read noise, which is usually a fixed value. N_read (Read Noise): The noise of the sensor's readout circuit itself. In the formula, N_read^2 represents the variance of the read noise, which is usually a fixed value. N_read (Read Noise): N_read^2 N_ambient (Ambient Infrared Noise): Represents the variance of ambient infrared noise, i.e., additional photon noise, so it does not need to be squared again inside the square root. This is an extremely critical and often overlooked noise source in practice, especially under high ambient light conditions. N_ambient (Ambient Infrared Noise): Represents the variance of ambient infrared noise, i.e., additional photon noise, so it does not need to be squared again inside the square root. This is an extremely critical and often overlooked noise source in practice, especially under high ambient light conditions. N_ambient (Ambient Infrared Noise): Sources and Impacts of Ambient IR Main sources of Ambient IR include: Sunlight: Especially in outdoor environments, the infrared radiation in sunlight is very strong. The advantage of choosing the 940nm band is that this band is located in the Water Absorption Band of the solar spectrum. This means water vapor in the atmosphere absorbs most of the 940nm solar infrared, significantly reducing the ambient infrared noise entering the sensor, thereby improving the system's SNR performance in outdoor environments. Indoor Lighting: Some indoor lighting (like halogen lamps) also emits significant infrared light. Multi-Device Interference: In scenarios like conference rooms or open office spaces, when multiple devices equipped with IR Cameras (like laptops) operate simultaneously, the IR LED light sources emitted by other devices may become ambient noise for the local device. Sunlight: Especially in outdoor environments, the infrared radiation in sunlight is very strong. The advantage of choosing the 940nm band is that this band is located in the Water Absorption Band of the solar spectrum. This means water vapor in the atmosphere absorbs most of the 940nm solar infrared, significantly reducing the ambient infrared noise entering the sensor, thereby improving the system's SNR performance in outdoor environments. Sunlight: Especially in outdoor environments, the infrared radiation in sunlight is very strong. The advantage of choosing the 940nm band is that this band is located in the Water Absorption Band of the solar spectrum. This means water vapor in the atmosphere absorbs most of the 940nm solar infrared, significantly reducing the ambient infrared noise entering the sensor, thereby improving the system's SNR performance in outdoor environments. Sunlight: 940nm Water Absorption Band Indoor Lighting: Some indoor lighting (like halogen lamps) also emits significant infrared light. Indoor Lighting: Some indoor lighting (like halogen lamps) also emits significant infrared light. Indoor Lighting: Multi-Device Interference: In scenarios like conference rooms or open office spaces, when multiple devices equipped with IR Cameras (like laptops) operate simultaneously, the IR LED light sources emitted by other devices may become ambient noise for the local device. Multi-Device Interference: In scenarios like conference rooms or open office spaces, when multiple devices equipped with IR Cameras (like laptops) operate simultaneously, the IR LED light sources emitted by other devices may become ambient noise for the local device. Multi-Device Interference: Under high ambient light (especially outdoor) conditions, Ambient IR will dominate the noise floor. At this time, simply increasing the IR LED current has limited improvement on SNR, because both signal and noise increase simultaneously, and the SNR improvement is not obvious. Key Conclusion: In the ambient noise dominated regime, the sensitivity of SNR to IR LED current drops significantly. Key Conclusion: At this time, the following strategies must be used for joint optimization: IR BPF Bandwidth: Choose a narrower BPF bandwidth to precisely match the emission wavelength of the IR LED, maximizing the blocking of out-of-band ambient infrared noise. (Note: This needs to be balanced with the aforementioned "BPF Angle Blue Shift". While a bandwidth that is too narrow can effectively block ambient noise, it may cause effective signals incident at large angles at the edges to be filtered out. In practice, an optimal trade-off must be made based on the lens CRA and ambient light intensity.) Temporal Filtering: Through multi-frame image stacking and averaging, effectively reduce random noise (like Shot Noise and Read Noise), but the effect on Ambient IR Noise is limited. Strobe and Ambient Light Alternating Exposure: Utilize IR LED Strobe mode to alternately expose under two modes: with IR LED illumination and without IR LED illumination. By subtracting the images, the impact of ambient light is eliminated, extracting a pure IR image. IR BPF Bandwidth: Choose a narrower BPF bandwidth to precisely match the emission wavelength of the IR LED, maximizing the blocking of out-of-band ambient infrared noise. (Note: This needs to be balanced with the aforementioned "BPF Angle Blue Shift". While a bandwidth that is too narrow can effectively block ambient noise, it may cause effective signals incident at large angles at the edges to be filtered out. In practice, an optimal trade-off must be made based on the lens CRA and ambient light intensity.) IR BPF Bandwidth: Choose a narrower BPF bandwidth to precisely match the emission wavelength of the IR LED, maximizing the blocking of out-of-band ambient infrared noise. (Note: This needs to be balanced with the aforementioned "BPF Angle Blue Shift". While a bandwidth that is too narrow can effectively block ambient noise, it may cause effective signals incident at large angles at the edges to be filtered out. In practice, an optimal trade-off must be made based on the lens CRA and ambient light intensity.) IR BPF Bandwidth: Temporal Filtering: Through multi-frame image stacking and averaging, effectively reduce random noise (like Shot Noise and Read Noise), but the effect on Ambient IR Noise is limited. Temporal Filtering: Through multi-frame image stacking and averaging, effectively reduce random noise (like Shot Noise and Read Noise), but the effect on Ambient IR Noise is limited. Temporal Filtering: Strobe and Ambient Light Alternating Exposure: Utilize IR LED Strobe mode to alternately expose under two modes: with IR LED illumination and without IR LED illumination. By subtracting the images, the impact of ambient light is eliminated, extracting a pure IR image. Strobe and Ambient Light Alternating Exposure: Utilize IR LED Strobe mode to alternately expose under two modes: with IR LED illumination and without IR LED illumination. By subtracting the images, the impact of ambient light is eliminated, extracting a pure IR image. Strobe and Ambient Light Alternating Exposure: 8. Design Flow: Actionable Design Methodology To translate the above theoretical analysis into a practical design flow, it is recommended to follow these steps to systematically optimize the IR Camera system, achieving minimum IR LED current and meeting Windows Hello certification requirements: Step 1: Define Target SNR & MTF Purpose: Clarify the image quality standards the system needs to achieve. Practical Considerations: Based on the Windows Hello HLK specifications, for example, Spatial SNR must be > 30dB in an 80 lux environment, while ensuring center MTF and corner MTF meet the minimum requirements for feature extraction. Purpose: Clarify the image quality standards the system needs to achieve. Purpose: Practical Considerations: Based on the Windows Hello HLK specifications, for example, Spatial SNR must be > 30dB in an 80 lux environment, while ensuring center MTF and corner MTF meet the minimum requirements for feature extraction. Practical Considerations: Spatial SNR must be > 30dB center MTF and corner MTF Step 2: Set Boundary Conditions (Worst-Case Scenario) Purpose: Simulate the most severe usage environment to ensure design robustness. Practical Considerations: Maximum Usage Distance: For example, the face is 70cm away from the module (i.e., the complete optical path from IR LED to face and face reflection to Sensor). Maximum Ambient Light (Ambient IR) Noise: For example, infrared radiation under strong outdoor sunlight. Purpose: Simulate the most severe usage environment to ensure design robustness. Purpose: Practical Considerations: Maximum Usage Distance: For example, the face is 70cm away from the module (i.e., the complete optical path from IR LED to face and face reflection to Sensor). Maximum Ambient Light (Ambient IR) Noise: For example, infrared radiation under strong outdoor sunlight. Practical Considerations: Maximum Usage Distance: For example, the face is 70cm away from the module (i.e., the complete optical path from IR LED to face and face reflection to Sensor). Maximum Ambient Light (Ambient IR) Noise: For example, infrared radiation under strong outdoor sunlight. Maximum Usage Distance: For example, the face is 70cm away from the module (i.e., the complete optical path from IR LED to face and face reflection to Sensor). Maximum Usage Distance: Maximum Ambient Light (Ambient IR) Noise: For example, infrared radiation under strong outdoor sunlight. Maximum Ambient Light (Ambient IR) Noise: Step 3: Calculate Required Signal Purpose: Based on the target SNR and noise levels under boundary conditions, back-calculate the minimum signal strength required by the sensor. Practical Considerations: Use the modified SNR formula: Purpose: Based on the target SNR and noise levels under boundary conditions, back-calculate the minimum signal strength required by the sensor. Purpose: Practical Considerations: Use the modified SNR formula: Practical Considerations: Here, Signal needs to be solved iteratively Step 4: Apply Energy Equation Purpose: Substitute the calculated required Signal into the system energy equation to find the initial I_LED required to achieve that Signal under current hardware parameters. Practical Considerations: Purpose: Substitute the calculated required Signal into the system energy equation to find the initial I_LED required to achieve that Signal under current hardware parameters. Purpose: Signal I_LED Signal Practical Considerations: Practical Considerations: Step 5: Sensitivity-Based Optimization Purpose: Utilize Sensitivity Ranking to systematically adjust hardware parameters to minimize I_LED. Practical Considerations: Priority: Prioritize parameters like F No, Binning Mode, and Sensor QE that can bring "passive gain" or "high-efficiency conversion". Avoid Blindly Increasing Current: IR LED Current should be used as a final fine-tuning method, not the primary optimization goal, to avoid non-ideality issues like efficiency droop, thermal coupling, and wavelength shift. Dual Verification of Corner Energy and Clarity: While optimizing F No to improve center SNR, it is necessary to verify whether corner MTF meets requirements, and consider the edge energy loss caused by BPF Angle of Incidence (AOI) Blue Shift, ensuring the quality of feature extraction across the entire facial area. Purpose: Utilize Sensitivity Ranking to systematically adjust hardware parameters to minimize I_LED. Purpose: Practical Considerations: Priority: Prioritize parameters like F No, Binning Mode, and Sensor QE that can bring "passive gain" or "high-efficiency conversion". Avoid Blindly Increasing Current: IR LED Current should be used as a final fine-tuning method, not the primary optimization goal, to avoid non-ideality issues like efficiency droop, thermal coupling, and wavelength shift. Dual Verification of Corner Energy and Clarity: While optimizing F No to improve center SNR, it is necessary to verify whether corner MTF meets requirements, and consider the edge energy loss caused by BPF Angle of Incidence (AOI) Blue Shift, ensuring the quality of feature extraction across the entire facial area. Practical Considerations: Priority: Prioritize parameters like F No, Binning Mode, and Sensor QE that can bring "passive gain" or "high-efficiency conversion". Avoid Blindly Increasing Current: IR LED Current should be used as a final fine-tuning method, not the primary optimization goal, to avoid non-ideality issues like efficiency droop, thermal coupling, and wavelength shift. Dual Verification of Corner Energy and Clarity: While optimizing F No to improve center SNR, it is necessary to verify whether corner MTF meets requirements, and consider the edge energy loss caused by BPF Angle of Incidence (AOI) Blue Shift, ensuring the quality of feature extraction across the entire facial area. Priority: Prioritize parameters like F No, Binning Mode, and Sensor QE that can bring "passive gain" or "high-efficiency conversion". Priority: Avoid Blindly Increasing Current: IR LED Current should be used as a final fine-tuning method, not the primary optimization goal, to avoid non-ideality issues like efficiency droop, thermal coupling, and wavelength shift. Avoid Blindly Increasing Current: IR LED Current Dual Verification of Corner Energy and Clarity: While optimizing F No to improve center SNR, it is necessary to verify whether corner MTF meets requirements, and consider the edge energy loss caused by BPF Angle of Incidence (AOI) Blue Shift, ensuring the quality of feature extraction across the entire facial area. Dual Verification of Corner Energy and Clarity: corner MTF BPF Angle of Incidence (AOI) Blue Shift This design flow will help engineers establish a clear optimization path early in the design phase, avoiding repeated debugging later and significantly improving development efficiency. 9. Conclusion Windows Hello certification is not just a stacking of specifications, but a precise energy budget battle and a balance of optical quality. By introducing the System Energy Equation for quantitative analysis, and prioritizing high-impact parameters like F No, Binning Mode, Shutter Type (Temporal Efficiency), and Sensor QE based on Sensitivity Ranking, maximum energy transfer efficiency can be effectively achieved with minimum IR LED current. In particular, the high temporal efficiency brought by Global Shutter is a key architectural choice for reducing average system power consumption. energy budget battle balance of optical quality System Energy Equation F No, Binning Mode, Shutter Type (Temporal Efficiency), and Sensor QE Sensitivity Ranking However, while pursuing ultimate efficiency, the overall robustness of the system must be considered. During the design process, one must be vigilant against the challenges of IR LED non-idealities (like thermal coupling and wavelength shift) and Ambient IR noise; more crucially, while optimizing center SNR, one must properly handle the corner MTF drop brought by large apertures, and the edge energy loss caused by BPF Angle of Incidence (AOI) Blue Shift due to large incident angles. Only by achieving a perfect balance between "energy efficiency" and "edge feature clarity" can an efficient, low-power, and secure biometric system be built, successfully passing Windows Hello certification and enhancing user experience. IR LED non-idealities Ambient IR noise corner MTF drop BPF Angle of Incidence (AOI) Blue Shift Disclaimer The content of this article is based on the author's years of practical experience in Windows Hello IR Camera system design and imaging engineering. All content is based on the author's experience and public information, including text and images, and is intended to provide technical exchange and reference in areas such as IR Camera system efficiency optimization, optical link energy budget, shutter temporal efficiency, and BPF angle blue shift. The standards, test methods, and product names mentioned in the text are for illustrative purposes only and do not represent any form of recommendation or endorsement. All illustrations, unless otherwise noted for their source, are AI-generated. Readers should carefully evaluate relevant information based on their own needs and professional judgment. The author is not responsible for any direct or indirect losses arising from the use of the content of this article. Windows Hello IR Camera system design imaging engineering IR Camera system efficiency optimization, optical link energy budget, shutter temporal efficiency, and BPF angle blue shift.
